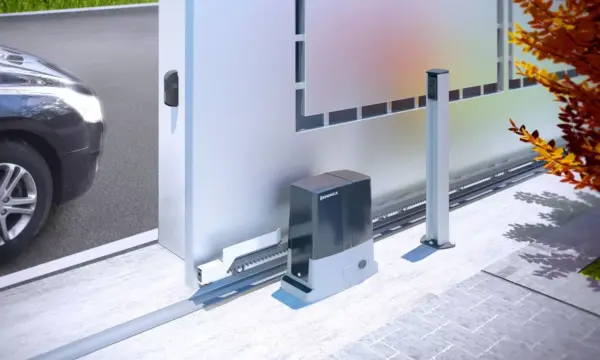

Beninca 600KG KBULL6M-1TX 230VAC

Fast 24 Vdc gear motor for intensive use with integrated control unit and virtual encoder | Switching power supply 115/230 Vac which reduces energy consumption and ensures a long lifespan of the actuator | The main control unit, on the top part of the motor, makes it possible to facilitate the wiring procedure | The virtual encoder allows proper management of the slowing-down phases, movement tracking (STC system), and torque management in relation to the position of the gate, which guarantees maximum safety | Self-programming with the radio transmitter can be activated at the first installation | Practical cableguides | Maximum performance and speed (25.5 m/min with 600 kg) | Anti-crushing system with amperometric obstacle detection | Safety sensor that stops the motor power supply during release operations | Designed for the connection of the X.BE accessory in order to be integrated with KNX domotics installations and the programming through the app BeUP and the interface PRO.UP | Operation guaranteed even in the event of a power supply failure through batteries that can be perfectly integrated in the motor | Option to operate opposed sliding gates using the SIS accessoryReinforced foundation plate Dima included. Dimensions 326×164.5×2 mm, motor fixing distance 301×75 mm, 4 holes Ø 8.5 mm
