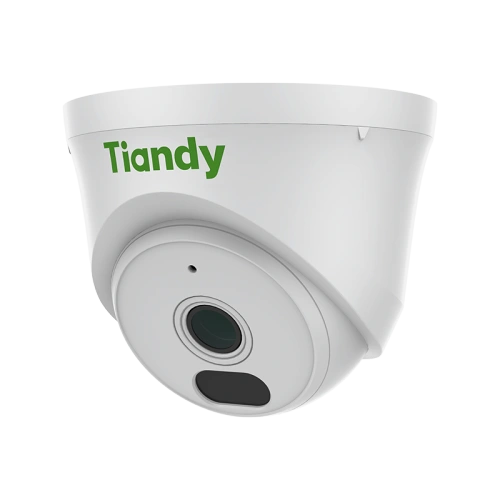

Indoor 2MP Fixed IR Plastic Camera (colormaker) TC-C320N 1ANB-28/40-VJO
- Plastic housingUp to 2MP,1920×1080@30fpsS+265/H.265/H.264B/H.264M/H.264HColor:0.02Lux@(F2.0,AGC ON),B/W:0Lux with IRIR range up to 30mOperating conditions -30℃~60℃(-22℉~140℉), ≤95%RHPoE:IEEE 802.3af,Max. 3WIP67
26.00د.ا
|
Camera |
|
|
Image Sensor |
1/3″CMOS |
|
Min. Illumination |
Color:0.02Lux@(F1.6,AGC ON),B/W:0Lux with IR |
|
Shutter Time |
1s~1/100000s |
|
Day&Night |
IR-cut filter with auto Switch (ICR) |
|
Smart IR |
Yes |
|
WDR |
DWDR |
|
S/N |
>52dB |
|
Angle Adjustment |
0~340°(P); 0~75°(T); 0~360°(R) |
|
Lens |
|
|
Lens Type |
Fixed focal lens |
|
Focal Length |
2.8mm |
|
Lens Mount |
M12 |
|
Aperture Range |
F1.6 |
|
Aperture Type |
Fixed |
|
Field of View |
90.7°(H); 50.9°(V); 102.7°(D) |
|
DORI Distance |
Detect:41.48m Observe:16.46m Recognize:8.3m Identify:4.1m |
|
Illuminator |
|
|
IR LEDs |
2 |
|
IR Distance |
Up to 30m |
|
Wavelength |
850nm |
|
White LEDs |
2 |
|
Whitelight Distance |
Up to 15m |
|
Compression Standard |
|
|
Video Compression |
S+265/H.265/H.264B/H.264M/H.264H |
|
Video Bit Rate |
32k~4Mbps |
|
Image |
|
|
Max. Resolution |
2MP,1920×1080@30fps |
|
Main Stream |
PAL:25fps(1920×1080, 1280×720) NTSC:30fps(1920×1080, 1280×720) |
|
Sub Stream |
PAL:25fps(704×576, 704×288, 640×360, 352×288) NTSC:30fps(704×480, 704×240, 640×360, 352×240) |
|
BLC |
Yes |
|
HLC |
Yes |
|
AGC |
Yes |
|
3D DNR |
Yes |
|
White Balance |
Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock White Balance |
|
OSD |
Overlay of additional characters in 1 regions, 1 line, with a maximum of 48 characters; 16*16/32*32/48*48; Lattice |
|
Privacy Mask |
4 black static areas |
|
Defog |
Yes |
|
Feature |
|
|
General Alarm |
Motion Detection |
|
Exceptions Alarm |
IP Address Conflict |
|
Network |
|
|
Protocols |
RTSP; HTTP; TCP; UDP; ICMP; DHCP; DNS; NTP; IPv4; SSH; Unicast |
|
System Compatibility |
ONVIF(Profile S/T) ; SDK; CGI; Milestone |
|
Remote Connection |
≤2 |
|
Client |
Easy7 VMS |
|
Web |
IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+ |
|
Interface |
|
|
Communication Interface |
1×RJ-45 (10/100 Base-T) |
|
General |
|
|
Web Client Language |
English |
|
Operating Temperature |
-30℃~60℃(-22℉~140℉) |
|
Operating Humidity |
≤95%RH |
|
Storage Temperature |
-30℃~60℃(-22℉~140℉) |
|
Storage Humidity |
10%~95%RH(non-condensing) |
|
Power Supply |
PoE:IEEE 802.3af,Max. 2.5W |
|
Protection |
Surge4000V; ESD6000V |
|
Boundary Dimensions |
94(L)94(W)78(H)mm |
|
Package Dimensions |
105(L)105(W)85(H)mm |
|
GrossWeight |
0.17kg |
Based on 0 reviews
Be the first to review “Indoor 2MP Fixed IR Plastic Camera (colormaker) TC-C320N 1ANB-28/40-VJO”
منتجات ذات صلة
-
IP CAMERA
Outdoor 4MP Fixed IR Bullet Camera（colormaker）TC-C34WS,Spec:I5W/E/M/2.8mm/VJO4.2
• Metal housing
• Up to Max. 2592×1520 resolution
• S+265/H.265/H.264B/H.264M/H.264H
• Color:0.002Lux@(F1.6,AGC ON),B/W:0Lux with IR
• Smart IR, IR range 50m
• Support microSD/microSDHC/microSDXC card, up to 512 GB
• Support smart surveillance
• Operating conditions -40℃~65℃, Humidity 95% or less (no
condensation)
• DC12V±25%,Max. 6W, POE 802.3af,Max. 7W
• IP67SKU: 6971849726267 -
IP CAMERA

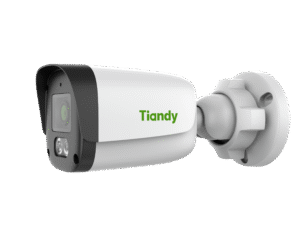

Outdoor 2MP Fixed IR Bullet Camera (colormaker) TC-C321N 1ANB-28/40-VJO
