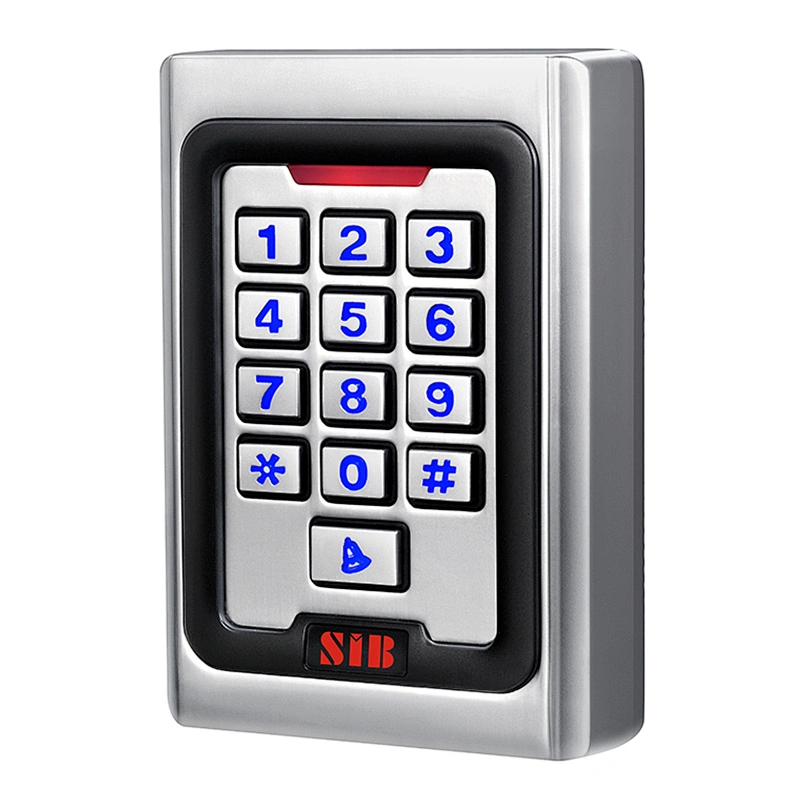

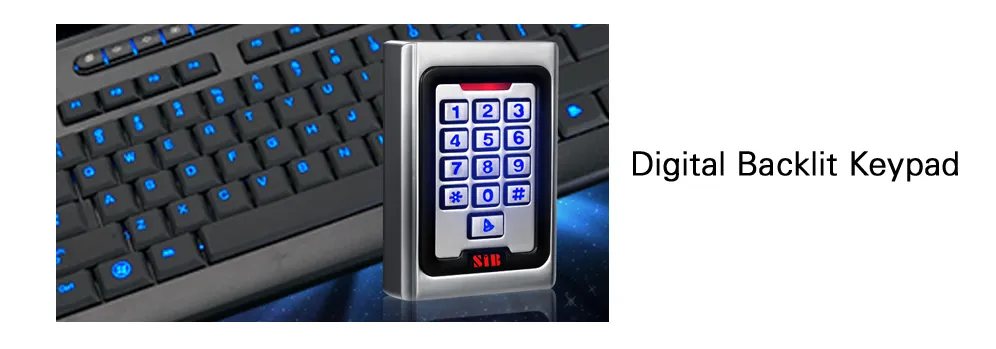

SIB K5EM Single Door Access Control
- Strong Zinc Alloy Electroplated anti-vandal case
- Full programming from the keypad
- 2000 uses, supports Card, PIN, Card + PIN
- Can be used as a stand alone keypad
- Backlight keys
- Wiegand 26 input for connection to external reader
- Wiegand 26 output for connection to a controller
- Adjustable Door Output time
- Very low power consumption (30mA)
- Fast operating speed, <20ms with 2000 users
- Lock output current short circuit protection
- Easy to install and program
- Built in buzzer
- Red, Yellow and Green LEDS display the working status
33.00د.ا
1.Features
- Indoor use
- Strong Zinc Alloy Electroplated anti-vandal case
- Full programming from the keypad
- 2000 uses, supports Card, PIN, Card + PIN
- Can be used as a stand alone keypad
- Backlight keys
- Wiegand 26 input for connection to external reader
- Wiegand 26 output for connection to a controller
- Adjustable Door Output time
- Very low power consumption (30mA)
- Fast operating speed, <20ms with 2000 users
- Lock output current short circuit protection
- Easy to install and program
- Built in buzzer
- Red, Yellow and Green LEDS display the working status
2. Specifications
|
Operating Voltage |
DC 12V±10% |
|
User Capacity |
2000 |
|
Card Reading Distance |
3-6 cm |
|
Active Current |
＜60mA |
|
Idle Current |
25±5 mA |
|
Lock Output Load |
Max 3A |
|
Alarm Output Load |
Max 20A |
|
Operating Temperature |
-45℃～60℃ |
|
Operating Humidity |
10%- 90% RH |
|
Waterproof |
Conforms to IP68 |
|
Adjustable Door Relay time |
0 -99 seconds |
|
Adjustable Alarm Time |
0- 3 minutes |
|
Wiegand Interface |
Wiegand 26 bit |
|
Wiring Connections |
Electric Lock, Exit Button, External Alarm,External reader |
3.Wiring
|
Colour |
Function |
Description |
|
Pink |
BELL_A |
Doorbell button one end |
|
Pink |
BELL_B |
Doorbell button to the other end |
|
Green |
D0 |
WG output D0 |
|
White |
D1 |
WG output D1 |
|
Yellow |
OPEN |
Exit button one end(the other end connected GND) |
|
Red |
12V+ |
12V + DC Regulated Power Input |
|
Black |
GND |
12V – DC Regulated Power Input |
|
Blue |
NO |
Relay normally-on end(Connect positive electric lock “-“) |
|
Purple |
COM |
Relay Public end, connect GND |
|
Orange |
NC |
Relay Closed end(connect negative electric lock”-“) |
4. Installation
Remove the back cover from the keypad using the supplied special screw driver
Drill 2 holes on the wall for the Self tapping screws and I hole for the cable
Put the supplied rubber bungs to into the two holes
Fix the back cover firmly on the wall with 2 Self tapping screws
Thread the cable through the cable hole Attach the keypad to the back cover.
5. Diagram
Common Power Supply
Special Power Supply
Reader Mode
6. Packaging
|
Model |
Card Type |
Waterproof Degree |
Weight/PC |
Q’ty/CTN |
N.W/CTN |
Outside Dimension |
|
K5EM |
EM |
/ |
0.53kgs |
54PCS |
30kgs |
56*40*41cm |
|
K5MF |
Mifare |
/ |
0.53kgs |
54PCS |
30kgs |
56*40*41cm |
