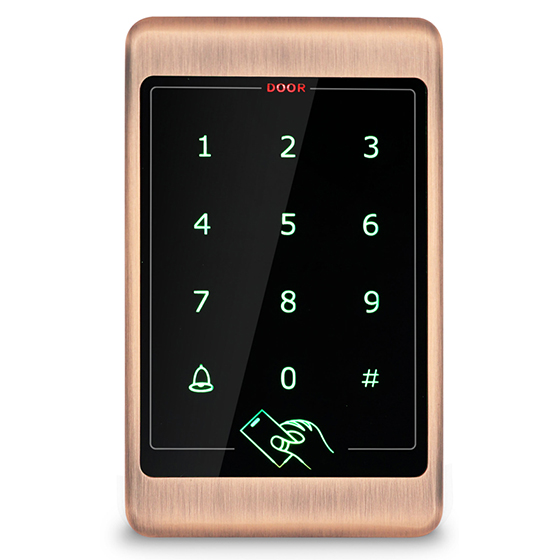

TS24A IP68 Waterproof Door Entry Security Control Systems

TS24A IP68 Waterproof Door Entry Security Control Systems

Compare

  • أنظمة التحكم في دخول الأبواب المقاومة للماء IP68

     نوع البطاقة: بطاقة EM

     التخزين: 4000 مستخدم

     تردد العمل: 125 كيلو هرتز

     جهد التشغيل: DC12V

     مدخل ومخرج Wiegand 26

38.00د.ا

Metal & Waterproof Touch screen Access Controller

Model No.: SA-TS24B Bronze

1. Specifications

1.1 Technical parameters:

Card type(alternative) EM Card (IC card for options)
Storage 4000 users
Operating voltage DC12V ±10%
Operating current <100mA
Card reading distance 1~15CM
Ambient temperature 0℃~60℃
Relative humidity 20%~80%
Dimensions 115×80×24mm
Weight 110g

1.2 Factory Default:

Programming Password 123456
Common Access Password None
Relay Unlock output 5 Seconds
Open mode Card or Access Password Access Password include Private Access Password(PIN) and Common Access Password
Security mode OFF
Backlight (For options) Auto
W26 port (For options) input

1.3 Light and Sound indicates:

Light: red and green

Light Description indicates
Red light flash every 1 sec (Slow flash) Standby state
Greenlight flash every 0.5sec (Fast flash) Pending further action
Red light is always ON Programming state
Greenlight is always ON within Open Time Unlocking state

Sound: Buzz

Sound Description Indicates
1 short buzz Valid input
3 short buzz Invalid input
1 long buzz Programming success
Continuous long buzz Restoring factory programming passwords

2. Installations Guide

Mark Colour Function
+12V Red Power+
GND Black Power-
PUSH BLUE Low-level output
OPEN Yellow Door Release
BEL+ Grey BELL+
BEL- Purple BELL-
DATA Green WG DATAO
DATA1 White WG DATA1
NC Brown Relay NC output
COM Orange Relay Com output
No Pink Relay NO output

Control Systems
